15 A to 300 A three phase WYE single stage filter

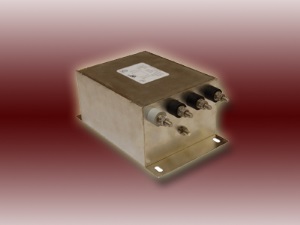

The RP400 from Radius Power is a three phase WYE single stage power line filter. The filter has an operating voltage of 480 V with 10% efficiency. It has an ambient temperature of -25 ºC to 50 ºC which operates at 50/60 Hz.

Features:
Operating Frequency: 50/60 Hz
Usable Frequency: DC – 400 Hz
Max. Operating Voltage: 480 V +10%
Rated Current: 15 to 300 A
Ambient Temperature: -25 to 50 °C
Climatic Category: 25/100/21
Hipot Rating (L-G): 3500 VDC
Terminals (T):
– S: 15 – 45 A (M5)
– 60 – 100 A (M6)
– 150/200 A (M10)
– 300 A (M12)
Safety Approvals: cURus, EN60939

For  more information, click here.
