A/D board suits radar and cellular markets

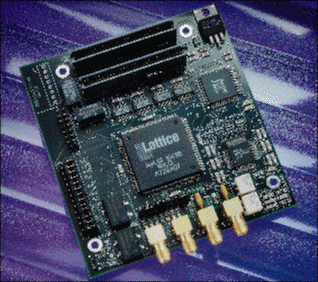

The Crossbow A/D converter mezzanine board for the company's SHARC-based
Bitsi system boards provides two input channels with an input bandwidth
of 640 Hz to 100 MHz. The board has 16-Kbyte on-board FIFOs for each
channel,
supports snapshot capture at up to 41 MHz, and supports continuous capture
at up to 25 Mbytes/s per channel.
The Crossbow's 12-bit monolithic A/D converter allows sampling of a
full 20-MHz cellular band. (From $2,995–available now.)
BittWare Research Systems
Concord, NH
George Allie 603-226-0404
Fax 603-226-6667
