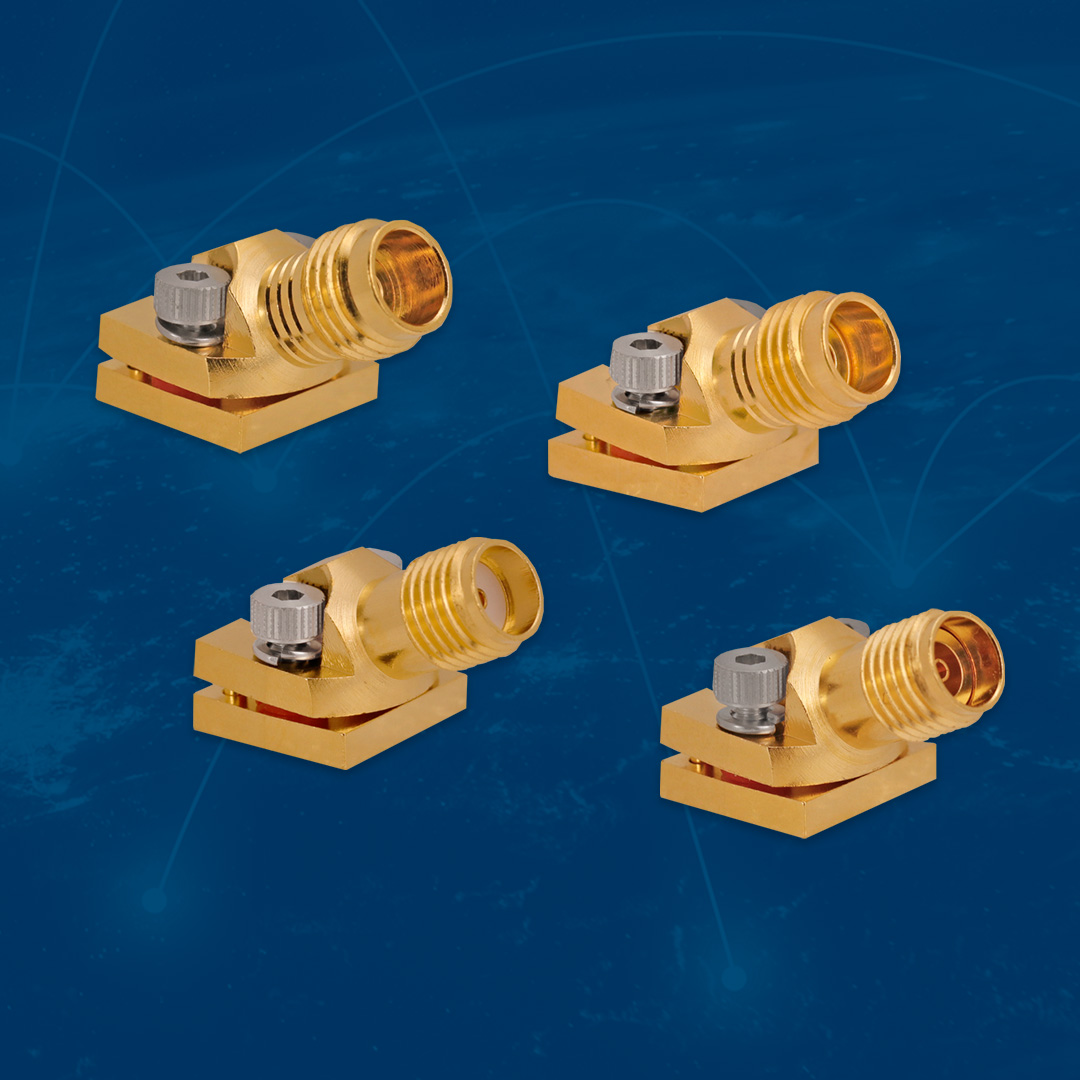

Cinch Connectivity Solutions, a Bel group company, recently launched the Johnson mmWave angled 30-degree RF connector family across four product lines: SMA, 2.92 mm, 2.4 mm and 1.85 mm. The Johnson RF coax connectors, with high-frequency performance up to 67 GHz, deliver high signal integrity for a variety of applications and markets.
(Source: Cinch Connectivity Solutions)
Thanks to their “excellent” return loss and insertion loss, these mmWave connectors can be used in demanding environments, such as for satellite communication equipment, GPS and phased array antennas, radar systems, automated test equipment and remote monitoring communication.
The 30-degree solderless connector jack family is suited for small enclosures and tight space constraints. “Angled connectors solve the challenges of stress to the minimum bend radius of the mating cable assembly,” said Cinch.
The frequency range for the 30-degree angled connectors are: 67 GHz for the 1.85 mm, 50 GHz for the 2.4 mm, 40 GHz for the 2.92mm and 26.5 GHz for the SMA.
These PCB-mounted RF connectors feature a gold-plated beryllium copper body and gold-plated contacts. They are rated to 500 mating cycles. The VSWR performance ratings are 1.35 max from DC to 67 GHz and 1.30 max from 26.5 GHz to 40 GHz.
The 30-degree angled RF connectors are available now. They can be purchased through Cinch’s distribution network: Digi-Key, Farnell, Mouser and Newark.
