Differential scopes ensure user safety

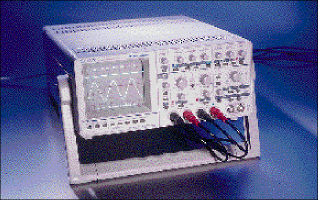

The Models 5034 and 5024 dual-channel analog oscilloscopes provide full
differential inputs on both channels and offer 30- and 20-MHz bandwidths,
respectively. Full sensitivity is provided from 10 mV/div to 200 V/div
in the differential mode, for both channels.
The units feature digital refresh at 0.1 µs to 200 s/div, 40-MHz
sampling, and a sweep speed of 0.2 µs/div to 200 ms/div. Dc-coupled
frequency response ranges are to 2 MHz (channel 1) and 30 MHz (channel
2). An RS-232 port enables remote programming. (Model 5034, $2,330; Model
5024, $2,290–available now.)
B&K Precision
Chicago, IL
Information 773-725-9252
Fax 773-725-9385
http://www.bkprecision.com
