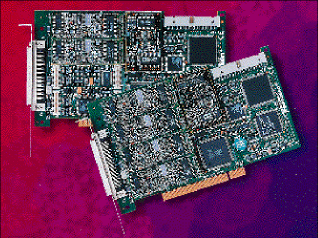

High-speed PCI DAQ boards sustain simultaneous sampling
The PCI-6110E and PCI-6111E data acquisition boards offer four and two
differential analog inputs, respectively, that can simultaneously sample
at 5 Msamples/s with 12 bits of resolution per channel. Input voltage is
software configurable to ±42 V, and gain is programmable from 0.2
to 50.
Both boards deliver two 16-bit analog output channels, eight lines of
digital I/O, and two up/down 24-bit counter timers. Designed to work with
Windows 95/NT, the boards are compatible with most data acquisition
software.
(PCI-6110E, $2,995; PCI-6111E, $2,195–available now.)
National Instruments
Austin, TX
Ernest Martinez 800-258-7022
or 512-794-0100
