MicroSys Electronics has extended the scalability of the NXP S32G-based miriac system-on-module (SOM) family with the new S32G3 vehicle network processor that delivers more data processing power for mixed-critical safety applications. The new miriac MPX-S32G399A-based SOM offers 2.5 times more applications processing performance over the previous NXP S32G2-based predecessor.
The NXP S32G vehicle network processor targets OEM and Tier-1 ASIL D safety applications. These include real-time connected vehicles, mobile machinery, and automotive test and measurement equipment. Other applications include data loggers, edge gateways, and fail-safe programmable logic controllers (PLCs).

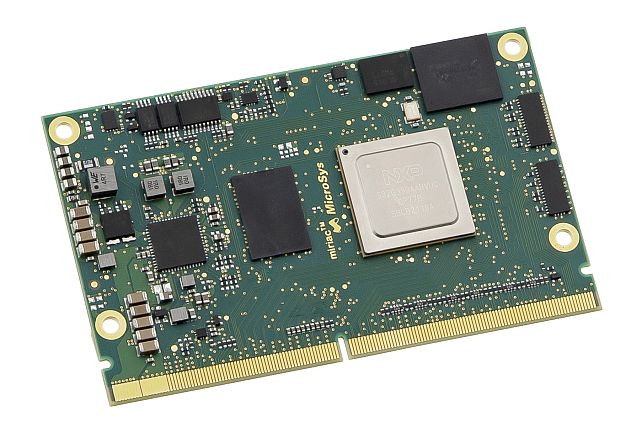

miriac MPX-S32G399A-based system-on-module. Click for a larger image. (Source: MicroSys Electronics)
The new SOM extends the application areas to SIL certifications for any market that requires functional safety standards to IEC 61508, including railway technology (EN 50155), aviation (DO-160), stationary and mobile machinery (ISO 13849), as well as manufacturing robots (ISO 10218), control systems (IEC 62061), and drive systems (IEC 61800‑5‑2), said MicroSys. Approvals for aviation (DO-254/DO-160) can be supported with manufacturer documentation.
The miriac MPX-S32G399A SOM features the S32G3’s eight Arm Cortex-A53 cores with Arm Neon technology organized in two clusters for applications and services. For real-time tasks, the S32G3 provides four dual-core lockstep Arm Cortex-M7 pairs. Clustered and operated in lockstep mode, the set of heterogenous cores of the S32G3 can support ASIL-D applications or any other functional safety standard comparable to IEC 61508, said MicroSys.
The SOM also integrates 4 GB of soldered LPDDR4 RAM at 3200 MT/s, up to 32 GB eMMC non-volatile memory, and 64 MB QuadSPI flash. The external SD card storage can be multiplexed with the on-board eMMC.
In addition, the new SOM offers multiple interfaces such as CAN, FlexRay, LIN, and Ethernet support including TSN. These include 4× SerDes interfaces configurable as PCIe Gen3 2×1 or 2×2, 3× 2.5 Gigabit Ethernet plus 3× Gigabit Ethernet, 18× CAN FD bus, 2× FlexRay, and 4× LIN as well as 14× GPIOs, 12× analog inputs (ADC), 4× FlexSPI, 2× UART, 1× USB, and 4× I2C. For trace and debug tasks, the SOM supports Aurora and JTAG interfaces. A board support package includes bootloader configuration and all required Linux drivers.
The miriac MPX-S32G399A SOM will be available for approved OEM evaluation including the carrier board, cable set, and cooling solution in 2022, followed by production in the first quarter of 2023.
