PC/104 analog module has digital calibration

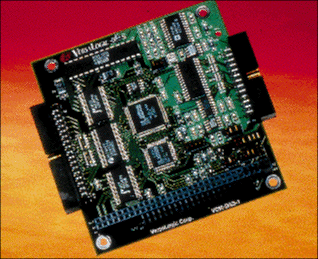

The VCM-DAS-1 PC/104 data acquisition and control module combines analog
and digital I/O and provides on-board calibration of the analog section
via digital potentiometers. Its sixteen 16-bit analog inputs have selectable
ranges of ±5 or ±10 V giving resolutions of 153 or 305 µV,
respectively. Throughput can reach 100 kHz.
The module's two independent 12-bit analog outputs, with selectable
ranges of 0 to 5 or 0 to 10 V, can drive 2-kilohm loads and settle within
10 µs. Two high-current 8-bit digital I/O ports are included. ($287–available
now.)
VersaLogic
Eugene, OR
Terry Roberts 800-824-3163
Fax 541-485-5712
