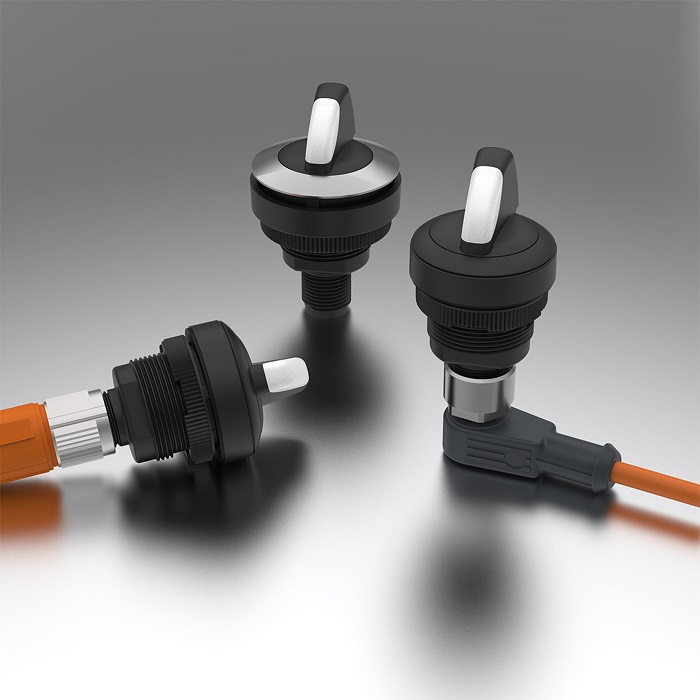

RAFI has expanded its family of RAMO S sealed selector switches with new devices that integrate M12 plug-and-play connectors for easier assembly. The M12 terminals reduce the wiring effort, which enables these devices to be installed by untrained personnel, said the company.
The RAMO S Series, with an IP65-rated fully-enclosed housing, does not require an additional housing. Like all control and indicator elements in the RAMO 22 and 30 series, these switches are suited for construction and retrofitting of decentralized applications. The RAMO 22 series devices feature black front rings in a synthetic material, while the RAMO 30 versions have flat stainless steel bezels.
Depending on the series, the switches are designed for mounting holes with diameters of 22.3 mm or 30.3 mm. In addition, RAFI offers the RAMO EDGE fixing angle that provides the option of placing the switches offset on any surfaces or on 40-mm profile rails.
The RAMO S selector switches are available in rotating angles of 40°, 60° or 90°. Depending on the model, the levers can be switched to up to three positions. They are available in momentary contact, latching or momentary contact and latching actuations. The contact positions are 1NC+1NO, 1NO, and 2NO. The selector switches are also available in illuminated versions with translucent handle marking.
